Automatic Fire Suppression for Server Rooms & Data Centers
One electrical fire. One unprotected rack. Days of downtime. BlazeCut stops it inside the cabinet before it becomes any of those things.
Multi-rack or commercial deployment? Email dalton@modernfiresuppression.com if you have any questions
Your Server Room Has a Fire Problem No Ceiling Sensor Can Solve
A standard server cabinet runs 24 hours a day. It draws between 5 and 15 kilowatts of continuous power. It's packed with aging PSUs, loaded UPS units, and thermal stress that compounds every year. And it sits, most of the time, in a room that nobody is watching.
When something ignites inside that cabinet, a ceiling-mounted smoke detector is measuring the wrong thing in the wrong place. It needs enough particulate in the air above the racks to trigger. By the time that happens, the fire has already been running for two to four minutes inside the enclosure it started in. The cabinet that was burning is now a cabinet that has been burning.
That gap between ignition and detection is where hardware is destroyed, data becomes unrecoverable, and a contained electrical event becomes a room-level emergency.
BlazeCut puts the detection where the fire actually is. Inside the cabinet. At the source. The system lives in the enclosure and responds the moment temperatures spike to a critical threshold. Not after the smoke drifts to the ceiling. Not after someone checks a panel. The moment the heat is there.
Blazecut Is simple - here's why that matters
Most fire suppression systems are assemblies. A cylinder holds the agent. A separate detection system notices the fire. A triggering mechanism connects the two. Each of those components has to work correctly, in sequence, at the exact moment everything else is going wrong.

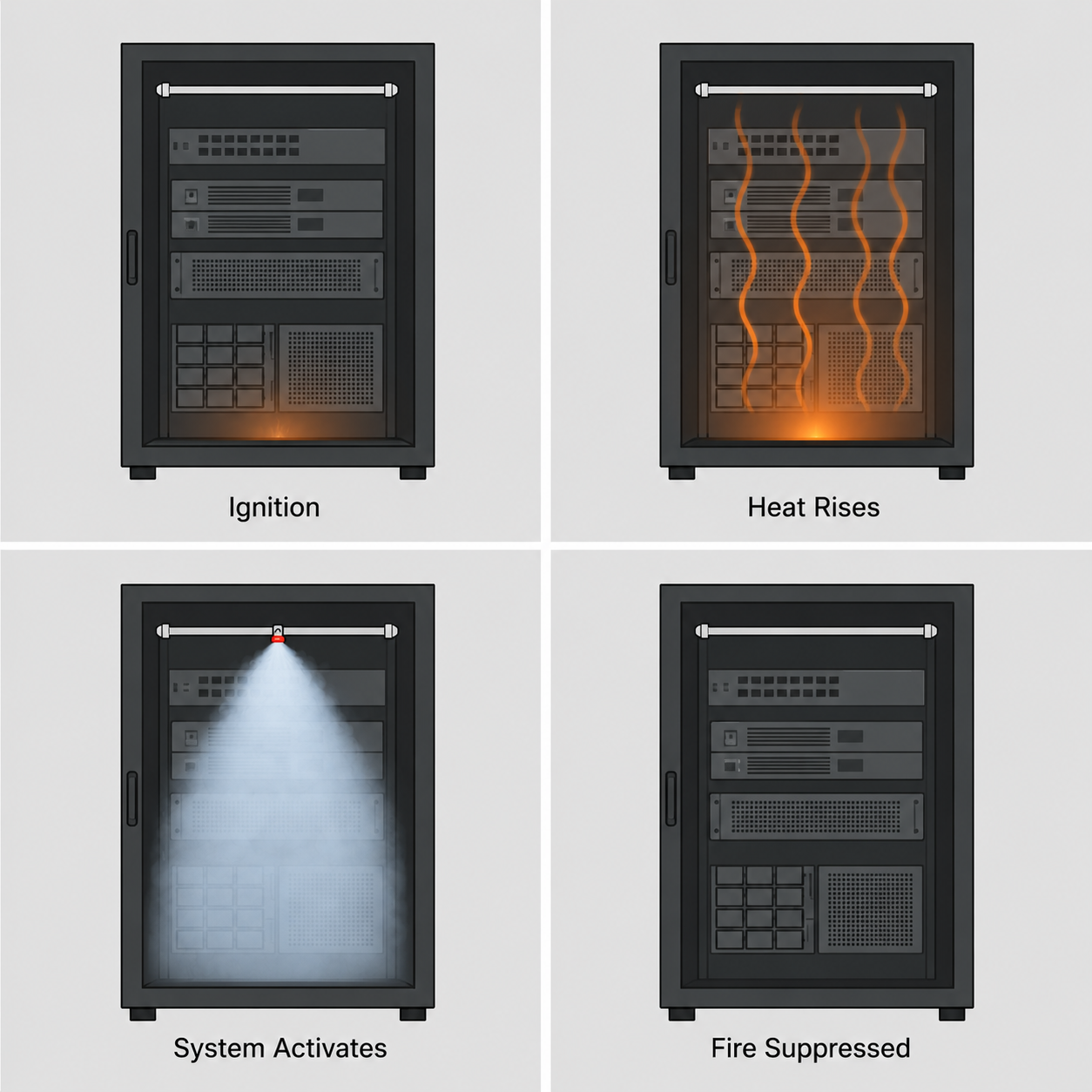

BlazeCut is not an assembly. It is a single pressurized tube filled with FK-5-1-12 clean agent that runs along the interior of your cabinet. The tube itself is the detector. When temperatures inside the enclosure reach the activation threshold, the polymer wall melts at the hottest point, the tube ruptures, and the opening it creates becomes a perfectly directed discharge point aimed straight at the source of the fire. No signal has to be sent. No valve has to open. No secondary component has to respond correctly under pressure. Nothing to wire in, nothing to pressurize, nothing to service. Up to ten years of protection without drawing a single watt of power.
This is your first line of defense, not your only one. A fire caught inside one cabinet never becomes the room-level event that forces your big system to activate. You want FM200 as a last resort. BlazeCut is what you put between your equipment and the moment you ever need it. And if things do go legal afterward, a suppression system mounted inside the affected cabinet is documented evidence that you put protection at the source. A ceiling sensor forty feet from the problem is not.
Compartmentalize the system. Compartmentalize the risk. Compartmentalize the damage.
Sizing comes down to one measurement. The internal volume of your cabinet. Width times depth times height. Find your setup below. Swipe To See More.

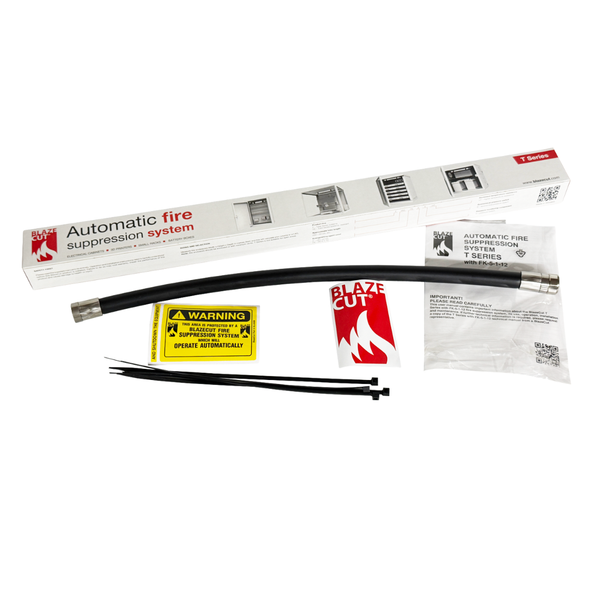

TR050FK or TR050FK-S. At up to 6 cubic feet of internal volume this is the smallest enclosure in the lineup and the TR050FK is sized exactly for it. Enough agent to flood that interior completely. Nothing wasted, nothing lacking.
Small business server closets, retail back offices, single-cabinet network installs, and remote edge computing locations. Any situation where one cabinet is doing a focused job in a tight space.

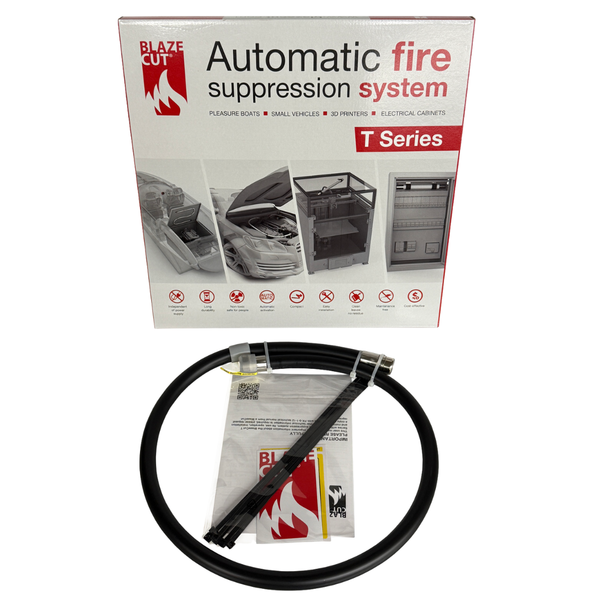

TR100FK or TR100FK-S. The TR100FK covers up to 16 cubic feet for electrical applications, which gives you real headroom above the 12 cubic foot ceiling of this enclosure. That margin matters in a cabinet running dense, heat-generating equipment.
Branch office server rooms, smaller managed service provider deployments, and facilities that run dedicated network infrastructure without needing a full 42U footprint.

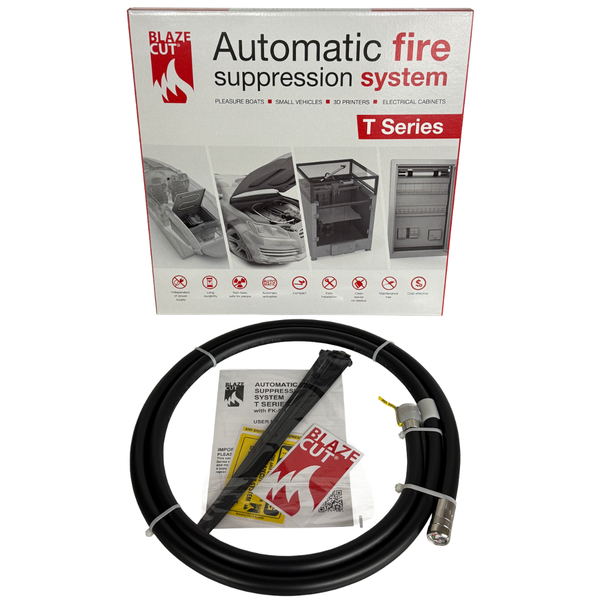

TR200FK or TR200FK-S. A shallow 42U cabinet sits right at the upper edge of what the TR100FK covers comfortably. The TR200FK picks up with coverage up to 32 cubic feet, which gives you confidence the interior volume is fully protected even as equipment density increases over time.
Data closets, small to mid-size server rooms, and colocation deployments where space is at a premium and cabinet depth is limited by the room layout rather than the equipment load.
TR200FK or TR200FK-S. This is the most common server cabinet configuration in US data rooms and the TR200FK is the system specified for it most often. Internal volume on a full depth 42U cabinet lands right in the middle of the TR200FK coverage range, which means you are not pushing the ceiling on agent concentration.
Primary server rooms, managed IT environments, colocation facilities, and any business running on-premise infrastructure as a core part of its operation.

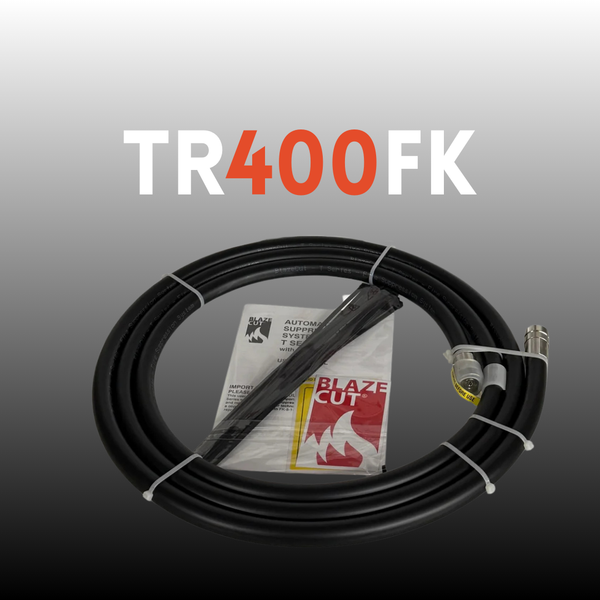

TR400FK or TR400FK-S. Once you are above 32 cubic feet the TR200FK no longer has enough agent to reach suppression concentration across the full interior volume. The TR400FK gives you the coverage and agent concentration needed for the largest and most densely loaded server cabinets without pushing the ceiling on protection.
Enterprise data centers, high density compute environments, colocation deployments running blade servers or high-draw networking equipment, and any facility where maximum hardware density inside a single cabinet is the operating standard.
Both systems use the same FK-5-1-12 agent and the same heat-sensitive tube. They protect identically. The only difference is what happens the moment the tube fires.
No wiring. No power. No external connections of any kind. Mount it inside the cabinet, and it is live. If the temperature inside the enclosure hits the activation threshold the tube does its job and the fire stops. That is the entire system.
This is the right call when the cabinet is not connected to a broader monitoring setup, when simplicity is the priority, or when you are protecting a single enclosure in a location that does not have an alarm panel to wire into. It works without anyone knowing it is there and without anything else needing to work alongside it.
Once it is mounted it requires nothing from you. No annual inspection, no service contract, no certification to keep current. It sits in that cabinet for up to ten years and the only time you will think about it again is if it ever has to do its job.

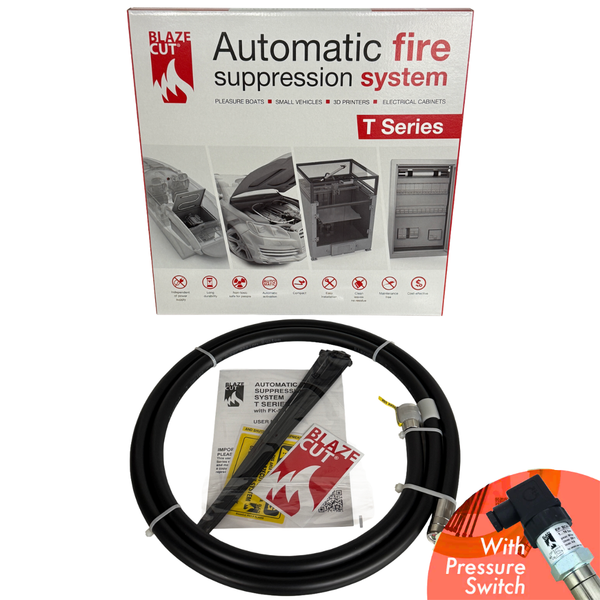

Same tube, same agent, same protection. The TR FK-S adds one thing: an integrated pressure switch that activates the moment the system discharges. From there you wire it to whatever your environment needs. A fire alarm panel. A UPS shutdown relay. A building management system. An audible alert. A remote monitoring dashboard.
When the tube fires, two things happen at once. The fire gets suppressed and you get notified. That notification can also trigger an automatic equipment shutdown, cutting power to the rack at the moment of discharge and removing the electrical fuel source before reignition has a chance.
For any environment where someone needs to know what happened, when it happened, and in which cabinet, the TR FK-S turns a suppression event into a documented incident. That matters for uptime reporting, insurance claims, and anyone who has to answer questions after the fact about what protections were in place.
If you are specifying fire suppression across a multi-cabinet server room, a co-location environment, or a managed IT facility, our team can work through it with you directly. We can help you match the right system to every enclosure in the space, advise on alarm integration, and work through any questions about deployment before you order.
The goal is the same in every case: stop the fire at the source, before it becomes a room event, before your room system fires, and before you are managing a recovery instead of a prevention.
Email dalton@modernfiresuppression.com with your rack count, cabinet sizes, and whether you need pressure switch integration. We will come back with a specific recommendation.
Stop the Fire Where It Starts. Not After It Spreads.
Honestly, there is no single best answer. A well protected server room is a layered system, and the right combination depends on the size of your environment, what equipment you are running, and what monitoring infrastructure you already have in place. What most setups are missing is not a better room level system. It is a first line of defense at the cabinet level that stops a fire before it ever becomes a room level event.
That is where BlazeCut fits. A T-Series system mounted inside each enclosed cabinet responds at the source, before ambient conditions in the room change, before a ceiling sensor trips, and before your room flooding system has any reason to activate. It does not replace FM200 or a clean agent room system. It protects them. The closer you can get to stopping a fire at the rack, the less work everything behind it ever has to do. BlazeCut gets you as close to that as anything on the market.
No. FK-5-1-12 is electrically non-conductive, non-corrosive, and evaporates completely within seconds of discharge. It leaves zero residue of any kind. Equipment that was not on fire remains in exactly the condition it was in before the system activated. This is the primary reason FK-5-1-12 is the specified agent for data center and server room environments over dry chemical or water based alternatives, both of which cause significant secondary damage to hardware and require extensive cleanup before the room can operate again.
Sizing is based on the internal volume of the cabinet, not the external dimensions. A standard 42U enclosed server cabinet has an internal volume of roughly 22 to 32 cubic feet depending on interior depth. The TR200FK or TR200FK-S is the correct system for most standard 42U cabinets. For shallower cabinets with an interior depth under 28 inches the TR100FK or TR100FK-S may be sufficient. For 48U or high density cabinets the TR400FK or TR400FK-S is the right call. When in doubt size up. There is no downside to extra coverage margin.
No, and it is not designed to. BlazeCut operates at the cabinet level. It stops a fire inside the enclosure before it can escalate into a room level event. If BlazeCut does its job your room level system never has a reason to activate. That is the point. A room flooding system is your last line of defense. BlazeCut is your first. The two work together, and the best outcome for any room level suppression system is that it never fires because something caught the problem earlier. BlazeCut is that something.
FK-5-1-12 is a fluoroketone clean agent, chemical name perfluoro(2-methyl-3-pentanone), CAS number 756-13-8. It has a global warming potential of 1.0, one of the lowest of any suppression agent available, and a zero ozone depletion potential. It is electrically non-conductive, non-corrosive, and leaves zero residue on discharge. It is listed on the TSCA inventory and approved for use throughout the United States. It is safe to discharge directly onto live powered equipment, which is why it is the agent of choice for protecting high value electronics in data center and server room environments worldwide.
